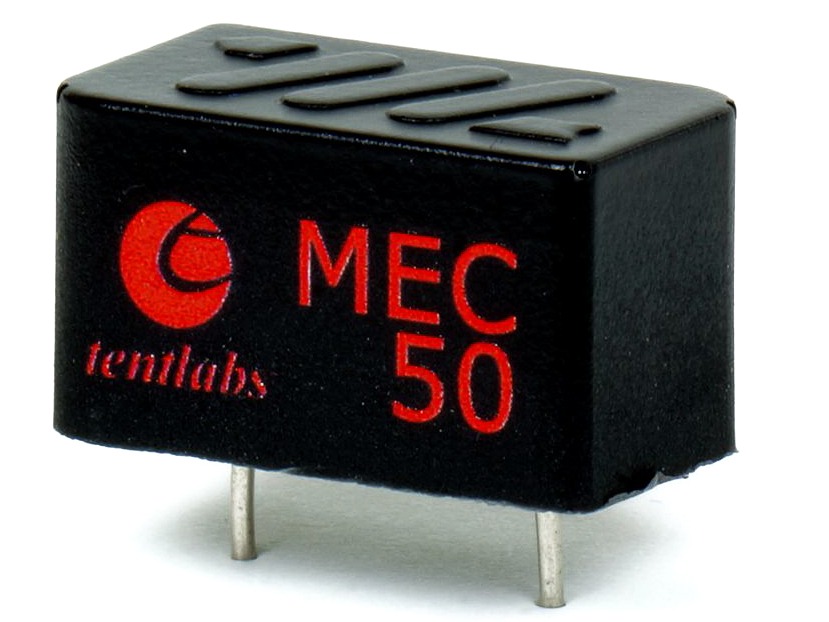

MEC50 mini echoke

Specificaties MEC-50

• maximum current 50 mA
• maximum Vdc 800 V
• Internal Limit for I larger than 68mA
• inductance 78 H
• maximum voltage drop @ Imax 12 V
• short circuit protection no
• protected for inverse connection yes
• maximum heat production 0,7 W
• minimum capacity C1 27 uF
• optimal capacity C1 = C2 47 uF

Downloads

Nederlands-talig :
NL TENTLABS MEC50 / MEC100 DESCRIPTION AND MANUAL (PDF)

Engels-talig :
UK TENTLABS MEC50 / MEC100 DESCRIPTION AND MANUAL (PDF)
